Water Tap Connector

Description

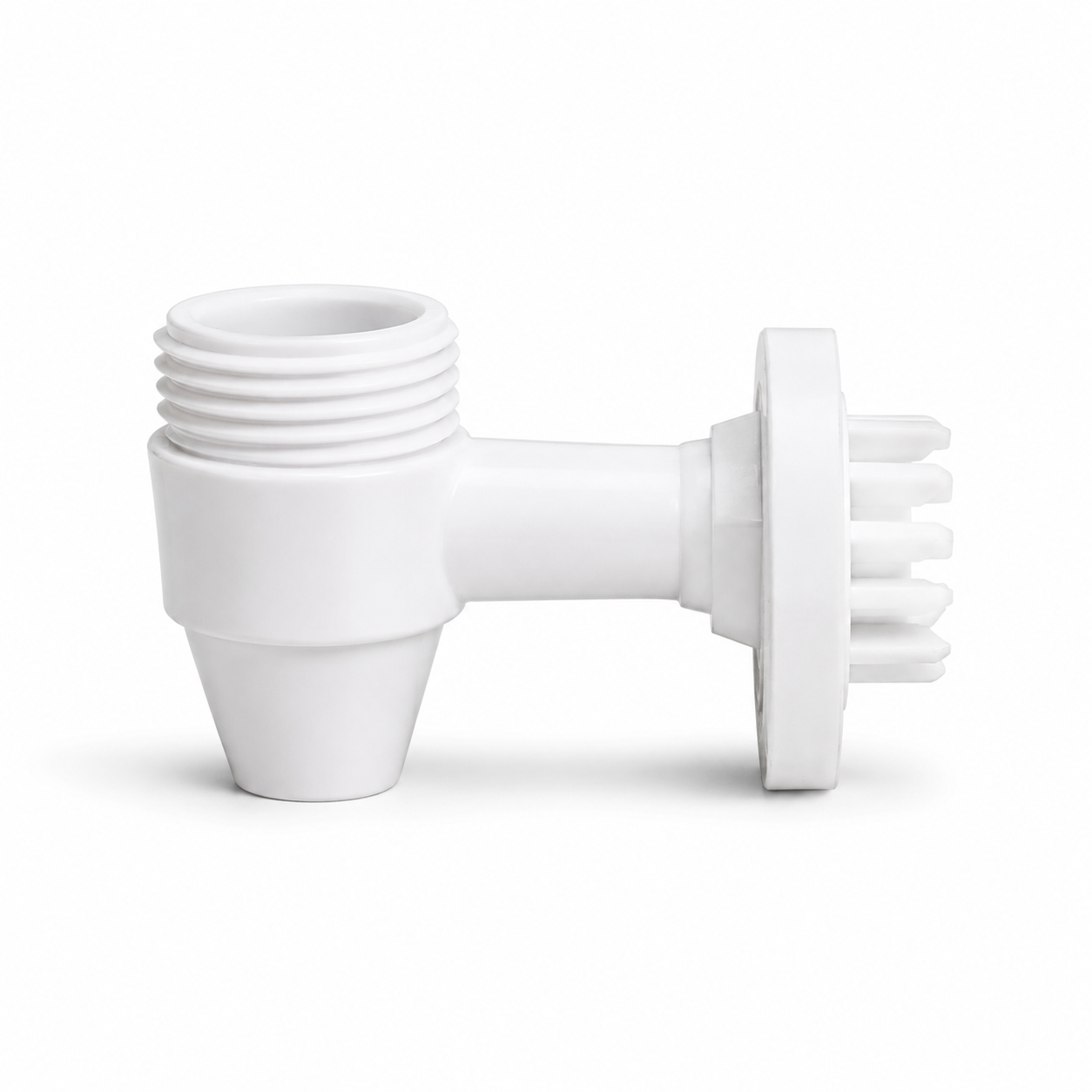

Outside Installation Drinking Water Tap Connector

Easy Installation | Leak-Proof Design | Ideal for RO Systems, Water Dispensers & Drinking Water Applications

The Outside Installation Drinking Water Tap Connector is an innovative solution designed to make tap installation faster, easier, and more reliable. Unlike conventional tap connectors that require access from inside the tank or cabinet, this unique design can be installed completely from the outside, making it perfect for RO systems, water dispensers, water coolers, drinking water tanks, and other water dispensing applications.

The connector features a specially engineered locking hook mechanism that automatically expands and grips the inner side of the mounting surface after insertion. Once inserted, simply tighten the locking nut from the outside to securely fix the tap in place—eliminating the need for difficult internal access.

To ensure long-lasting, leak-free performance, the connector includes multiple sealing components:

• O-Ring for primary water sealing.
• O-Ring Retaining Ring to keep the O-ring securely positioned.
• Rubber Washer that acts as a stopper between the tap body and the mounting surface, preventing water leakage around the installation area.
• Locking Nut that firmly secures the connector and maintains a tight fit.

The water flow mechanism operates just like standard drinking water taps. Simply pull the handle downward (or upward, depending on installation) to dispense water. Once you’ve filled your glass, bottle, or container, release or return the handle to its original position to stop the flow automatically.

Manufactured from high-quality, food-safe materials, this connector is suitable for potable water applications and is designed to provide durability, reliable sealing, and hassle-free installation.

Key Features

• Innovative Outside Installation – No need to access the backside during installation.
• Self-Locking Hook Mechanism – Expands after insertion to securely grip the mounting surface.
• Quick & Easy Installation – Saves time and effort.
• Leak-Proof Multi-Seal Design – O-ring, retaining ring, and rubber washer minimize leakage.
• Strong Locking Nut – Ensures a firm and stable installation.
• Smooth Pull-Type Water Flow Control – Easy to operate and automatically returns to the closed position.
• Food-Grade Construction – Safe for drinking water applications.
• Durable & Corrosion Resistant – Built for long-term use.

Applications

Suitable for:

• RO Water Purifiers
• Water Dispensers
• Water Coolers
• Drinking Water Tanks
• Beverage Machines
• Filtered Water Systems
• Domestic & Commercial Drinking Water Outlets

Package Includes

• 1 × Tap Connector Body (Food-Grade Plastic)
• 1 × Self-Locking Hook Assembly
• 1 × Locking Nut
• 1 × O-Ring (Leak-Proof Seal)
• 1 × O-Ring Retaining Ring
• 1 × Rubber Washer (Wall Sealing Gasket)
• 1 × Operating Handle (Pull-Type Lever)
• 1 × Stainless Steel Compression Spring (Automatic Return Mechanism)
• 1 × Valve Stem / Plunger Assembly
• 1 × Food-Grade Silicone Rubber Valve Seal (Stops Water Flow Completely)
• 1 × Protective Cap / Cover
• 1 × Plastic Pin / Shaft (Handle Pivot)
