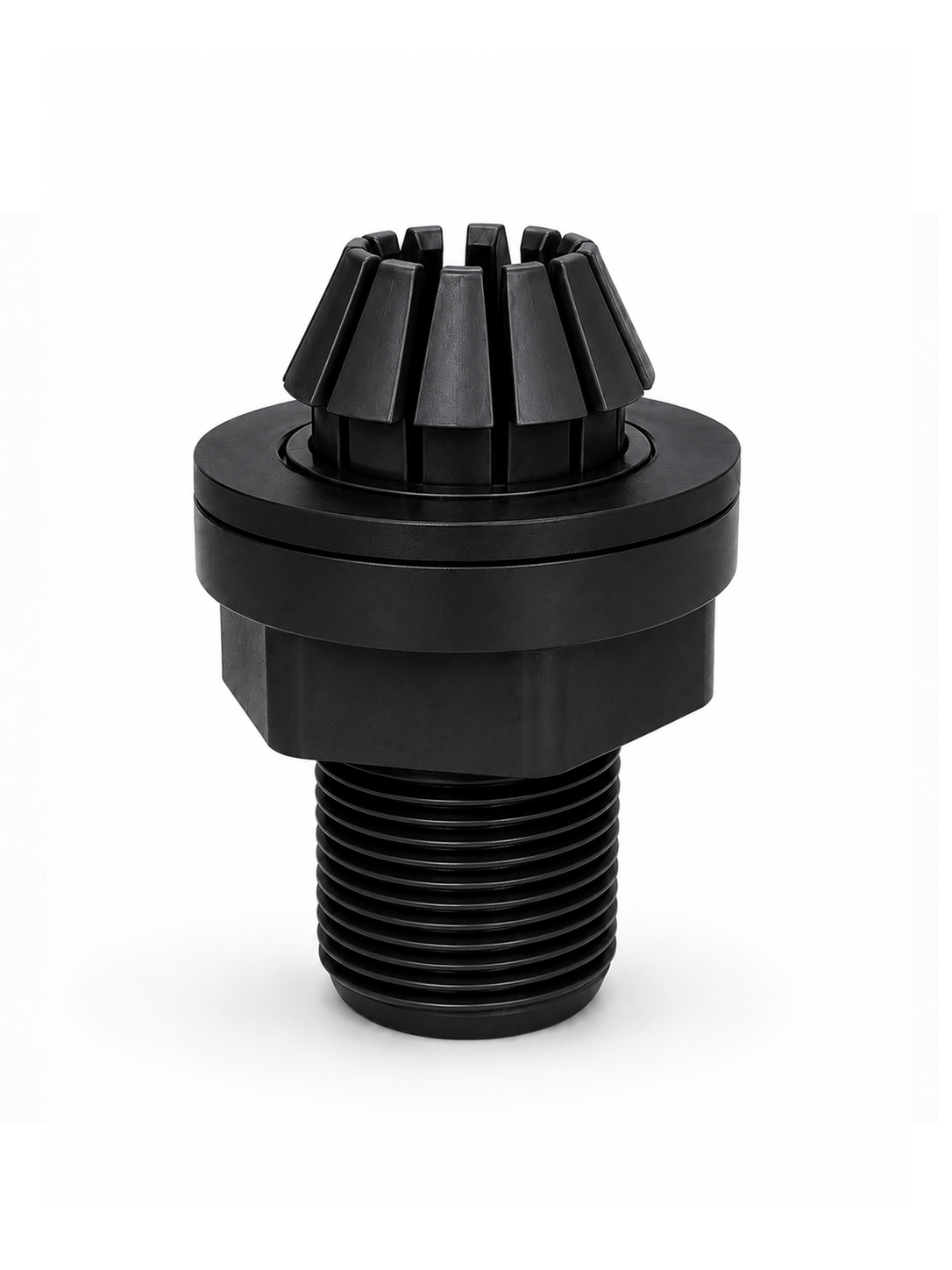

Water Tank Connector (UPVC)

Description

Outside Tank Water Connector (Tool-Free Inside Access Design) Install Your Water Tank Connector from the Outside – No Need to Reach Inside the Tank Our innovative Outside Tank Water Connector is designed to make installation faster, easier, and more convenient. Unlike conventional tank connectors that require access inside the tank during installation, this unique design allows the connector to be inserted from outside the tank and securely locked in place by simply tightening the nut. It is an ideal solution for overhead water tanks, underground tanks, chemical tanks, agricultural tanks, and other storage applications where internal access is difficult or impossible. Key Features

Outside Installation

• No need to enter or reach inside the tank.

• Simply insert the connector through the tank opening and tighten the locking nut from the outside.

Innovative Hook Locking Design

• Specially engineered hooks expand and grip the inside wall of the tank after insertion.

• Provides a secure and stable hold during installation.

Leak-Proof Sealing System

• High-quality O-ring creates a watertight seal to prevent leakage.

• Precision retaining ring keeps the O-ring firmly in position for long-lasting performance.

Strong Mechanical Support

• The connected pipe acts as an additional support, reducing stress, movement, and bending of the connector.

• Improves durability and minimizes the risk of leakage over time.

Easy Maintenance

• Can be installed or replaced without dismantling the tank or requiring access from the inside.

• Saves installation time and labor costs.

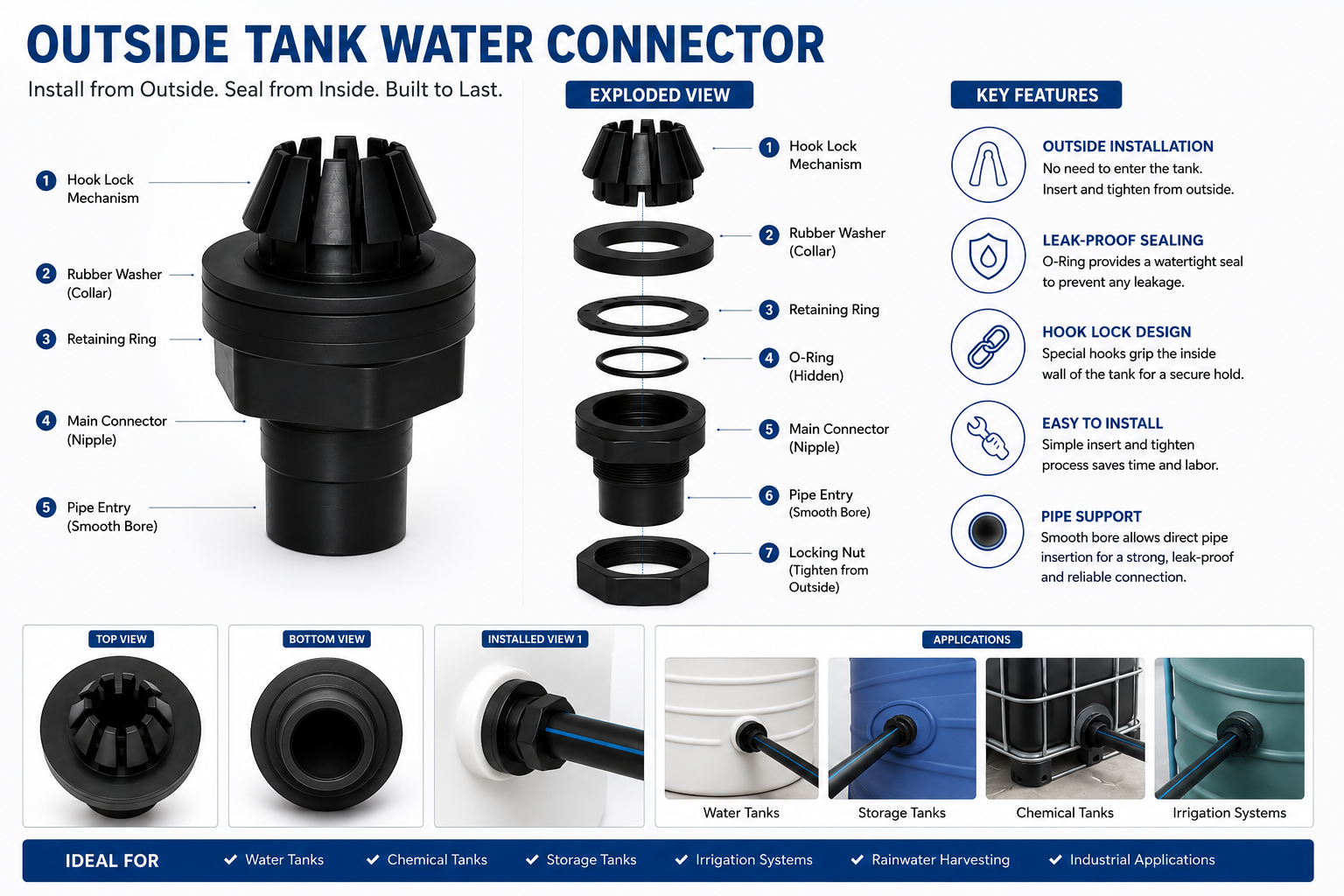

Components The connector assembly consists of:

Main Connector (Nipple)

Locking Nut

Retaining Ring

Rubber Washer

O-Ring

Integrated Hook Locking Mechanism.

How It Works

Insert the connector from the outside of the water tank.

The integrated hooks securely engage the inside surface of the tank.

Position the O-ring and rubber washer to create a watertight seal.

Tighten the locking nut from the outside.

Connect the pipe, which also provides additional structural support to the connector.

Applications

Plastic Water Tanks

HDPE Tanks

PVC Tanks

Rainwater Harvesting Systems

Agricultural Irrigation Tanks

Industrial Storage Tanks

Chemical Storage Tanks.

Benefits

✔ No inside tank access required

✔ Fast and simple installation

✔ Leak-proof sealing with O-ring technology

✔ Strong and secure hook locking mechanism

✔ Durable, corrosion-resistant construction

✔ Ideal for new installations and replacement projects.
